Coolroom Panels EPS Sandwich 50mm/75mm
Brand New Insulation EPS Sandwich Coolroom Panels 50mm/75mm
INSULATED EPS ROOF & WALL PANELS
What are insulated EPS roofs & wall panels used for?
EPS roof panels are insulated roofing panels that incorporate roof, insulation and ceiling, making it a unique 3-in-1 roofing system. It provides an attractive, internal off-white coloured steel lining that is maintenance-free. EPS wall panels are insulated sandwich panels made up of two steel faces bonded to an expanded polystyrene insulating core. It’s a unique light, cost-effective construction material used for both free-standing and load-bearing panels.
Benefits of insulated EPS panels:
✓ Innovative “Seam Look” system eliminates unsightly joints
✓ Easy to install
✓ Each roof panel spans up to 5m long unsupported
✓ Ideal for patio enclosures and carports
✓ Easy cable access and safe electrical ducts
✓ Available in flatteck roofing profile Fixing Recommendations for Roof Panels C Insulated roofing should be laid into the prevailing wind and sit neatly on the preceding roof sheet.
For the insulated roofing profile fasten through each crest.
Use cyclone caps and neoprene washers in all crest fixings.
Fix side laps with 12 x 20 hex head screws with neoprene washers at approximately 1000mm centres, refer to below:
Fixing to Steel Crest fixing only -
- one fixing per crest
- 50mm panel - 14-10x115 hex head screw
- 75mm panel - 14-10x135 hex head screw
Fixing to Timber Crest fixing only
one fixing per crest
50mm panel - 14-10x125 hex head screw
75mm panel - 14-10x150 hex head screw
Foam Density- 14kg/m³;
Steel face- 0.376mm; Surf Mist
50mm Thickness coolroom panels, (Width coverage: 1150mm. Actual width :1200mm)
W1150 x L2400 $126.6 p/sheet plus GST
W1150 x L2700 $144.89 p/sheet plus GST
W1150 x L3000 $157.65 p/sheet plus GST
W1150 x L3600 $187.32 p/sheet plus GST
W1150 x L4200 $213.54 p/sheet plus GST
W1150 x L4800 $239.76 p/sheet plus GST
W1150 x L6000 $292.20 p/sheet plus GST
50mm Thickness Roof panels, (Width coverage: 1150mm. Actual width :1200mm)
50mm thickness EPS roof panel in trim deck shape.
Available length : 3.0m, 3.8m,4.2m, 4.8m, 5.4m, 6m, 7.0m
(effective using width = 1050)
W1050 x L3000 $170.18 p/sheet plus GST
W1050 x L3800 $207.56 p/sheet plus GST
W1050 x L4200 $226.25 p/sheet plus GST
W1050 x L4800 $254.28 p/sheet plus GST
W1050 x L5400 $282.32 p/sheet plus GST
W1050 x L6000 $310.35 p/sheet plus GST
W1050 x L7000 $357.08 p/sheet plus GST
75mm Thickness coolroom panels (Width coverage: 1150mm. Actual width :1200mm)
W1150 x L2400 $137.64 p/sheet plus GST
W1150 x L2700 $157.31 p/sheet plus GST
W1150 x L3000 $171.45 p/sheet plus GST
W1150 x L3600 $203.88 p/sheet plus GST
W1150 x L4200 $232.86 p/sheet plus GST
W1150 x L4800 $251.84 p/sheet plus GST
W1150 x L6000 $319.80 p/sheet plus GST
75mm Thickness Roof panels coolroom panels
75mm thickness EPS in Trimdeck Roof panel.
Available length : 3.8m, 4.2m, 4.8m,5.4m, 6m, 7.0m, 7.2m and 8m.
(effective using width = 1050)
W1050 x L3800 $250.22 p/sheet plus GST
W1050 x L4200 $284.46 p/sheet plus GST
W1050 x L4800 $310.81 p/sheet plus GST
W1050 x L5400 $357.16 p/sheet plus GST
W1050 x L6000 $393.51 p/sheet plus GST
W1050 x L7000 $454.10 p/sheet plus GST
W1050 x L7200 $476.21 p/sheet plus GST
W1050 x L8000 $514.68 p/sheet plus GST
Note: GST applies for all purchase
Aluminium extrusions are available on site e.g. U channel, Base U, L shape angle, round corner, door frame aluminum, coving & rivets, coolroom mastic & silicone.

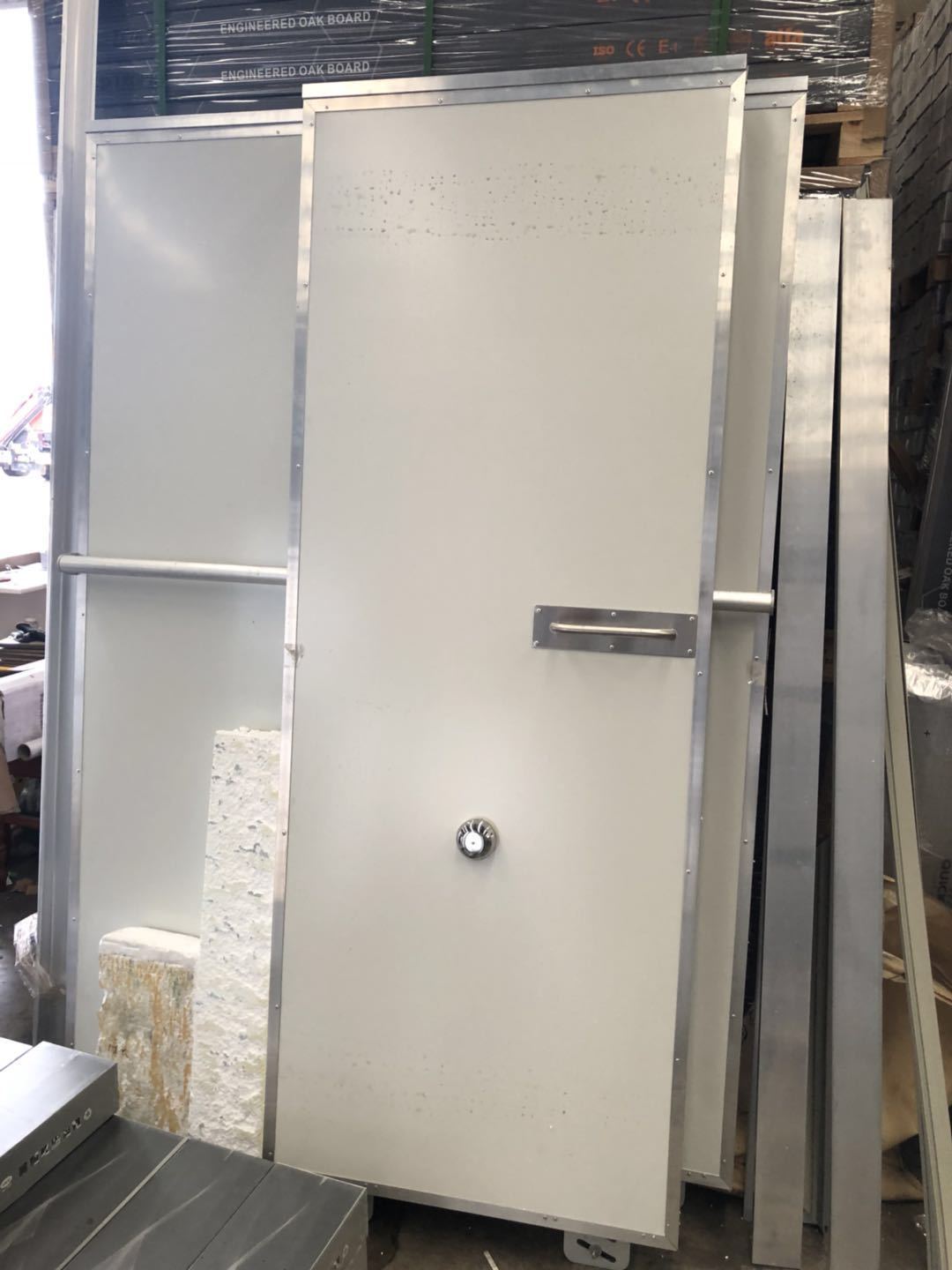

We also build TOP QUALITY COOLROOMS and COOLROOM DOORS with a supply of motors, fans, and compressors.
OUR ONE STOP SERVICE SAVES YOU ALL THE HASSLES.
Other sizes are available upon special order and local and interstate transportation can be arranged on request
